INTRODUCING IPD’S REBUILD KIT FOR THE CUMMINS® X15
THE NEW X15 ENGINE KITS PROVIDES THE SAME QUALITY YOU’VE COME TO EXPECT WITH OUR ISX15 ENGINE KITS
Revitalize your Cummins X15 engine with the IPD Engine Kit, a comprehensive package of high-quality components designed to deliver exceptional performance and reliability. IPD, a trusted name in aftermarket parts, offers a cost-effective alternative to OE parts without compromising on quality. With our in-house engineering team and state-of-the-art manufacturing process, we bring you a solution that exceeds your expectations.
IPD’s in-frame X15 kit offers everything you need for your engine rebuild:
- 2-Piece Forged Friction – Welded Steel Pistons ensure durability and enhanced performance. The high-performance piston is coated with manganese phosphate for superior protection against wear and corrosion.

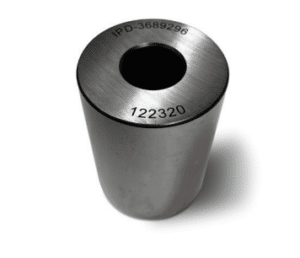

- Unique Pin Bore Profile – The IPD engineering team has developed a unique pin bore profile for optimal pin joint performance. This innovation ensures a perfect fit and enhances the overall efficiency of your engine.
- Graphite Skirt Coating – We apply an additional graphite coating around the piston skirt to minimize friction and maximize engine efficiency. This thoughtful addition further contributes to the longevity of your engine. Plus additional coating on top steel ring.

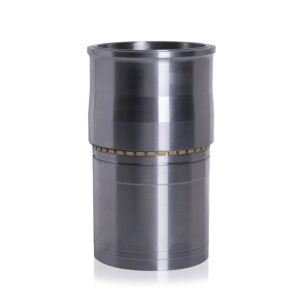

- Cast Iron Liner with APR – An anti-polish ring (APR) liner offers additional protection against carbon buildup to keep that liner clean.

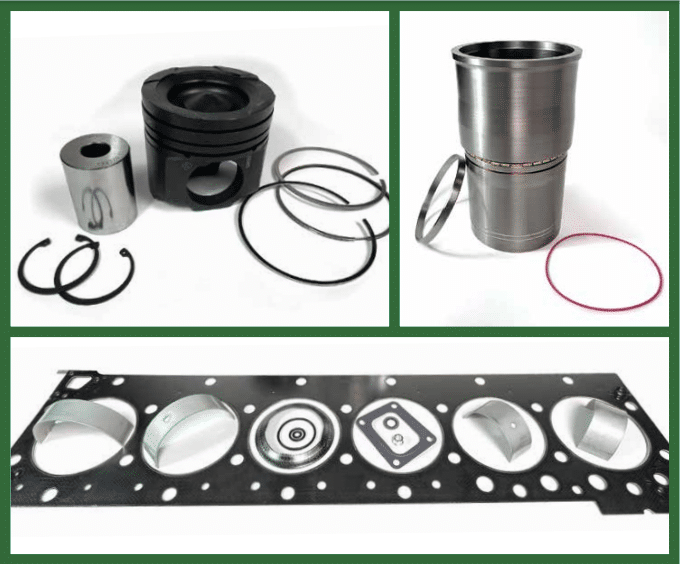

Components Included:
- Piston Kit (Forged Friction-Welded Steel)
- Liner Kit (Cast Iron)
- Main and Con Rod BearingsUpper Gasket Set
- Oil Pan Gasket
- The necessary components for engine rebuild including o-rings, seals
- Lower gasket set kit (5406188) is available separately to make an out-of-frame kit
KIF5828/87 | KIF5829/87 | Item Number | Item Description |
---|---|---|---|
6 | 5405828 | PISTON KIT | |
6 | 5405829 | PISTON KIT | |
6 | 6 | 5472970 | LINER KIT, 150MM APR |

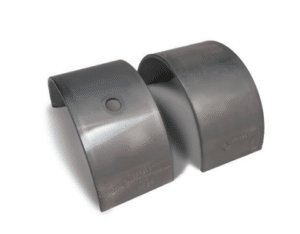

6 | 6 | 2882087 | CON ROD BEARING, STD, FRACTURED CON. RODS |
1 | 1 | 3802098 | SET, MAIN BEARING, STD |

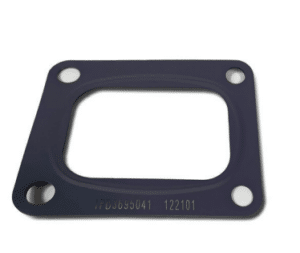

1 | 1 | 5406187 | GASKET SET, UPPER |
1 | 1 | 4318497 | REGULATOR |
1 | 1 | 4026684 | GASKET, OIL PAN |
1 | 1 | 4357177 | PRESSURE RELIEF VALVE |
1 | 1 | 3687856 | SEAL, O-RING, OIL PICKUP TUBE |
1 | 1 | 3684336 | GASKET THERMOSTAT HOUSING |
4 | 4 | 3689587 | STUD, TURBO CHARGER MOUNTING |
4 | 4 | 4298975 | NUT, TURBO CHARGER MOUNTING |
1 | 1 | 5406188 | GASKET SET, LOWER (sold separately) |

UNLOCK THE POWER OF PERFORMANCE AND VALUE WITH IPD ENGINE KITS FOR CUMMINS X15
BENEFITS OF IPD ENGINE KIT
- Reliable and Cost-Effective IPD parts are a trusted and cost-effective alternative to OE. You can rely on our components to deliver exceptional performance without breaking the bank.
- Superior Quality Our engine kit includes all-new quality parts, specifically engineered and manufactured to meet stringent quality standards. We prioritize reliability and longevity to provide you with a durable solution.
- Protective Packaging Each component of the IPD Engine Kit is meticulously packaged to ensure safe delivery. Our protective packaging safeguards the parts from damage during transit, ensuring that they reach you in pristine condition.
- Easy-to-Read Labels We understand the importance of clear instructions. Our easy-to-read labels make it simple to identify and locate the required components during installation, streamlining the rebuild process.
Don’t compromise on quality when it comes to your Cummins X15 engine rebuild. Choose the IPD Engine Kit and experience the perfect blend of reliability, affordability, and performance.
IPD Products for On-Highway Engines | |
---|---|
Caterpillar | 3116, 3126, 3208, 3306, 3406, C7, C9, C10, C12, C13, C15 |
Cummins | ISX, ISX15 and X15 |
Detroit | 60 Series and DD13, DD15 |
Check with your IPD regional sales manager or customer service representative for our latest offerings or visit IPDNet at store.ipdparts.com or in Europe at eurostore.ipdpart.com
Reliability backed by IPD’s Industry-Leading Warranty
All IPD quality parts for the Cummins X15 are backed by an industry-leading 2-year warranty (unlimited miles) for on-highway diesel applications.
