ENGINE PARTS FOR CUMMINS™ NATURAL GAS KT19

ENGINE PARTS FOR CUMMINSTM NATURAL GAS KT19

IPD has expanded our
Cummins NaturalGas KT19
product offerings to include
valvetrain components!

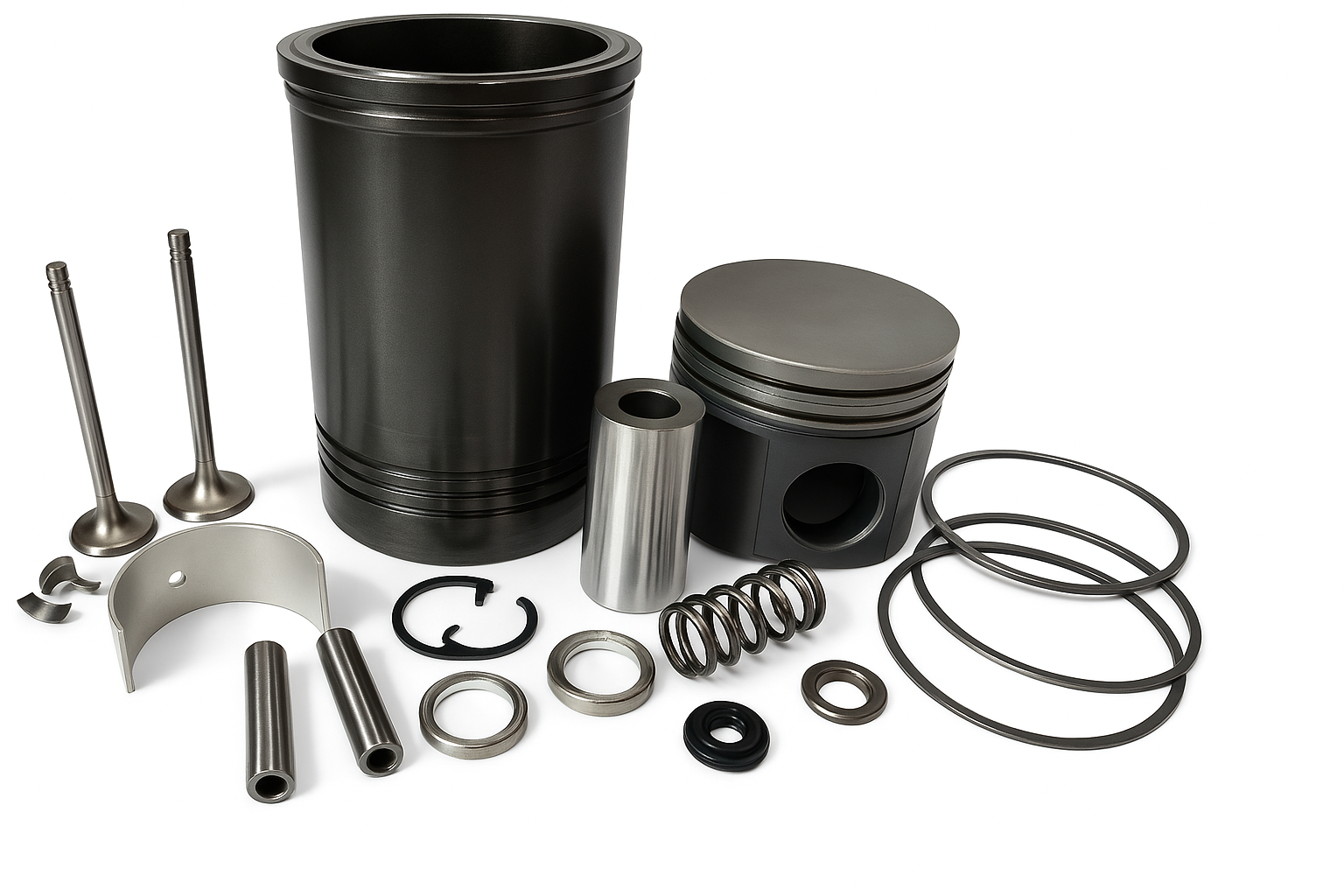

For many years IPD has offered the Cummins Natural Gas KT19 gas piston kit and engine overhaul kit. We are excited that we have expanded our offering to include new valvetrain components. These natural gas engine components use the highest quality aluminum for maximum performance and gas compression. The Cummins KT19 natural gas piston is just one of many engine parts IPD offers made specifically for the natural gas industry. Other parts included in this engine overhaul kit include:

  • Manganese phosphate-coated cylinder liner for the ultimate protection from corrosion, erosion, and cavitation damage.
  • Keystone top compression piston ring with chrome-plated wear surface and phosphate coating for ultimate durability.
  • Precision tension two-piece oil control ring with chrome-plated contact surfaces.

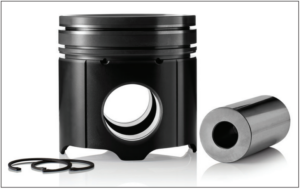

  • CNC-machined aluminum piston with graphite skirt coating and Ni-resist ring groove insert.

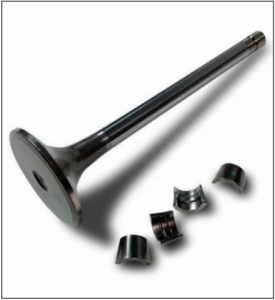

  • The KT19 valvetrain components feature a short-peened exhaust valve to ensure superior strength.
  • Both intake and exhaust valves have induction-hardened tips.
  • The exhaust valve seat (face) features a cobalt-chromium alloy hardface for ultimate high temperature wear resistance.

ENGINE PARTS FOR CUMMINSTM NATURAL GAS KT19 ENGINE PARTS FOR CUMMINSTM NATURAL GAS KT19 ENGINE PARTS FOR CUMMINSTM NATURAL GAS KT19

KOF5238/91KTG – Out of Frame kit

Item # Item Description Kit Number Qty/Kit
4955238 PISTON KIT, NATURAL GAS KOF5238/91KTG 6
2881745 RING SET KOF5238/91KTG 6
4024767 CYLINDER LINER KIT KOF5238/91KTG 6
AR12270 MAIN BEARING, STD, SET, WITH THRUST WASHERS KOF5238/91KTG 1
205840 CON ROD BEARING STD KOF5238/91KTG 12
4352573 GASKET SET, UPPER NATURAL GAS 34 KOF5238/91KTG 1
4089391 GASKET SET, LOWER 48 KOF5238/91KTG 1



Valve Train Components

Item # Item Description Notes
2881944 VALVE KIT, EXHAUST (Contains 4922155 VALVE, EXHAUST (1) & 205091 VALVE LOCK (2))
3803518 VALVE KIT, INTAKE (Contains 3052820 VALVE, INTAKE (1) & 205091 VALVE LOCK (2))
4099095 VALVE STEM GUIDE, EXHAUST
4099096 VALVE STEM GUIDE, INTAKE
4090182 VALVE INSERT, EXHAUST
3086193 VALVE INSERT, INTAKE
4099092 VALVE STEM SEAL, INTAKE
4099093 VALVE STEM SEAL, EXHAUST
3643725 VALVE SPRING (INTAKE & EXHAUST)
205094 VALVE SPRING RETAINER (INTAKE & EXHAUST)
3640315 ROTOCOIL (INTAKE & EXHAUST)



Parts available for oil and gas industry
CATERPILLAR® 3304/3306/3408/3412/3508/3512/3516/3600/C12/C15/C18/C27/C32
CUMMINS® K Series (19L/38L/50L)
WAUKESHA® VHP Series (7042/7044)



IPD WARRANTY FOR NATURAL GAS OR METHANE ENGINES
IPD quality parts are backed by an industry-leading 2-years/unlimited hours of operation on IPD parts except valvetrain (warranted for 1 year/unlimited hours).
