IPD expands our CAT coverage

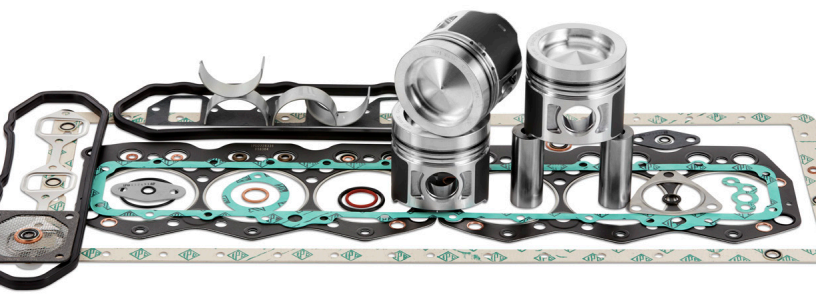

C6.4 ENGINE KITS NOW AVAILABLE

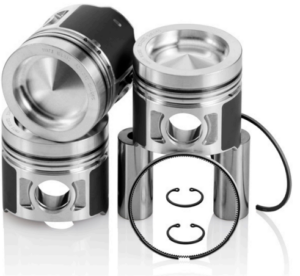

IPD is known worldwide for having the highest quality replacement engine parts. While we already cover a wide range of components for the medium and larger bore engines, we are excited that we now have in-frame and out-of-frame rebuild kits for the C6.4 series engines, including an aluminum piston designed to meet critical specifications. This smaller bore engine has many applications including Cat 320D and 320DL excavators. In addition to the rebuild kits, IPD offers piston kits, bearings, o-rings and gasket sets.
IPD adds valvetrain components for C6.4

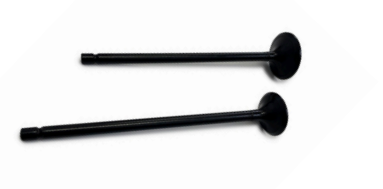

Additionally, IPD is now offering quality, precision-engineered valvetrain components for the C6.4 application. Both intake and exhaust valves have induction-hardened tips. The exhaust valve seat (face) featues a cobalt-chromium alloy hardface for ultimate high temperature resistance. All IPD valvetrain components feature precision engineering, manufacturing, and are held to precise specifications.
IPD IS COMMITTED TO QUALITY.

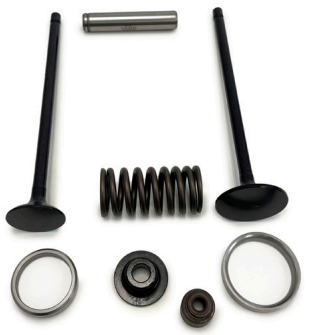

C6.4 VALVETRAIN COMPONENTS
| Part Number | Item Description |
| 2941684 | Intake Valve |
| 2941685 | Exhaust Valve |
| 3054885 | Guide |
| 2941688 | Spring |
| 1992189 | Stem Seal |
| 1992187 | Retainer |
| 3054883 | Exhaust Seat |
| 3054884 | Intake Seat |
| 1992188 | Lock |
C6.4 ENGINE KITS
| Part Number | Item Description |
| KIF4235/02 | Inframe overhaul kit |
| KOF4235/01 | Out-of-frame overhaul kit |
| KOF4235/01/WS | Out-of-frame overhaul kit w/sleeves |
| 3109553 | Gasket set, upper |
| 3109554 | Gasket set, lower |
| C64001 | Gasket set, out-of-frame overhaul (includes front and rear crankshaft seals) |
IPD’s engine replacement parts for the C6.4 can be ordered through IPDNet at store.ipdparts.com and for IPD Europe through eustore.ipdparts.com. You can also contact IPD customer service for more information at +1.310.530.1900.
Building the future with IPD engine parts
When it comes to construction and mining, you cannot risk downtime associated with engine failure. Cost per hour is the metric that IPD can help you lower by offering cost-effective reliability to ensure productivity and durability.
| IPD Products for Construction/Mining Engines | |
| Caterpillar | 300 Series, 3100 Series, 3200 Series, 3300 Series, 3400 Series, 3500 Series, C6, C7, C9, C10, C12, C15, C18, C27, C32 |
| Cummins | QSX Series, K Series |
