IPD Products for Caterpillar® 3400 & C15 SERIES ENGINES
The Standard for Quality, Innovation, Service and Support Since 1955
IPD Parts For 3400 & C15 Series
Coverage and options so that you can determine how most efficiently to overhaul your engine.

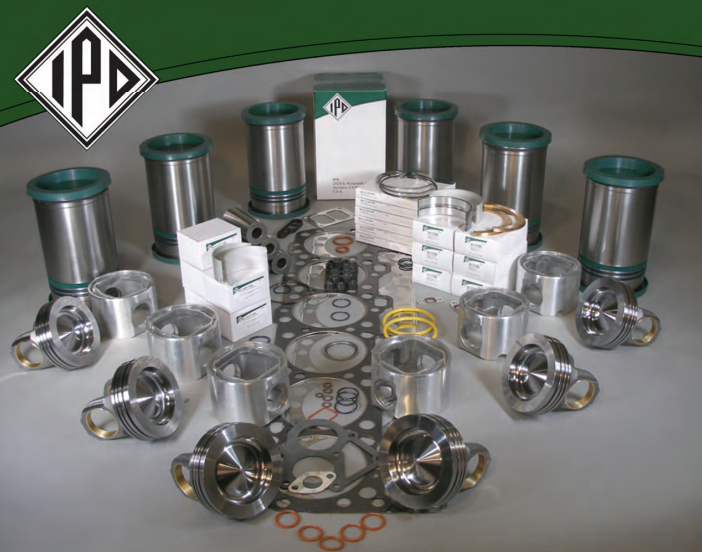

- In-frame and Out of Frame Overhaul Kits
- Crown-less kits (when reusing crowns)
- IPDSteel™ Pistons
- PLG (Piston & Liner Group or Cylinder Kit)
- Induction-Hardened & Crevice Seal Liners
- Valve Train Components
- Fuel System Components
- Crankshafts, Camshafts & Cam Followers
- Gasket Sets:
- IPDStyle 1-2-3™ complete sets
- Modular – OEM style sets
- Oil Coolers
- Water and Oil Pump Components
- Engine Bearings
- Miscellaneous parts (such as exhaust stud kits)
- Parts for older & newer “E” model applications
- NEW… IPD Parts for C15 Acert
IPD COVERAGE FOR 3406 / 3408 / 3412 “HEUI” APPLICATIONS
IPD offers a wide range of parts for HEUI (Hydraulically Actuated Electronically Controlled Unit Injector) applications, including the following popular wear items:
- IPDStyle 1-2-3™ and Modular Style gasket sets
- Engine bearings and bushings
- Valve train components
- Water and oil pump components
GAS AND METHANE APPLICATIONS FOR G3406 / G3408 / G3412 ENGINES
IPD also offers extensive coverage of these popular engines. The parts are produced from materials intended specifically for these critical applications. Some companies may offer products that fit these engines, but only IPD’s years of experience can provide you with the consistent quality and life expectancy you need. IPD’s over 50 years of manufacturing experience in the spark ignited industry has resulted in many long-time relationships with some of the best natural gas engine rebuilding specialists worldwide. Whether your company provides drilling, well servicing, natural gas compression, power generation, production or pipeline transmission… IPD supplies quality parts to provide performance and reliability for your specific application. IPD also supplies an extensive range of IPD products for these other Caterpillar® natural gas and methane applications as well:
- G3508 / G3512 / G3516 / G3520
- G3304 / G3306
- G379 / G398 / G399
- G342

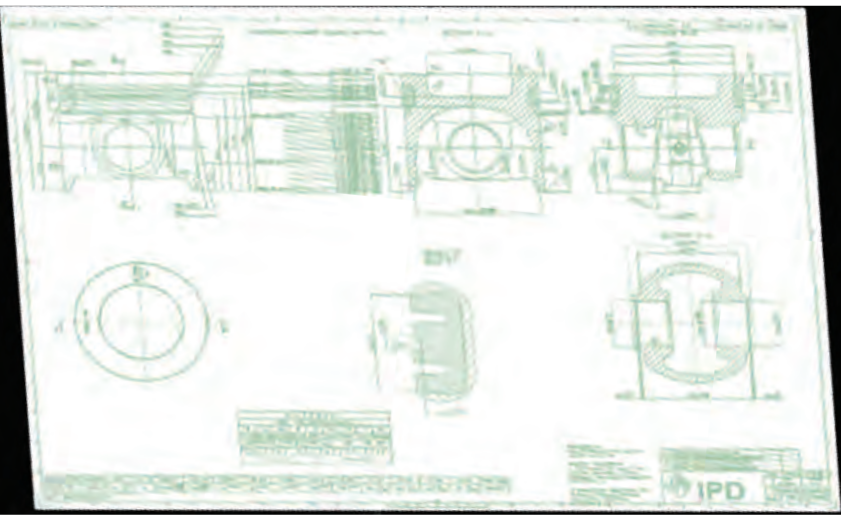

IPD designs, engineers, and controls manufacturing and quality assurance on critical products for natural gas
and methane applications, such as the G3400 series piston shown in our drawing to the right.
Our product line continuously expands so please
check with us often for new availability.
WIDE RANGE OF PARTS AVAILABLE

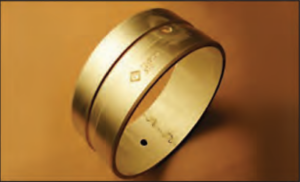

Camshaft and connecting rod bushings, including oversize camshaft bushings for popular applications.

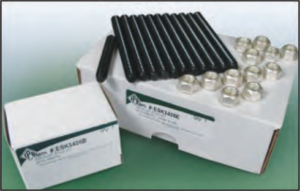

Exhaust manifold stud kits that include nuts and studs, packaged in convenient kits specific to 3406 engines (individual parts available for 3408 & 3412 applications).

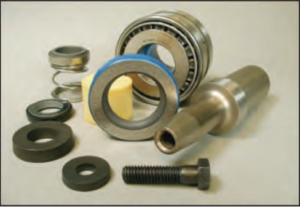

Water pump rebuild kits for popular applications.

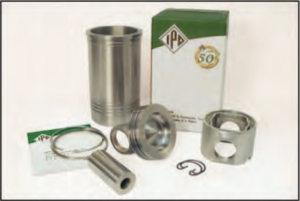

Available from IPD are popular options such as cylinder kits, in-frame and out-of-frame overhaul engine kits. (Shown with IPDSteel™ articulated piston)

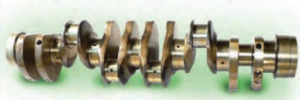

IPD offers a wide range of high-quality forged steel crankshafts that receive multiple quality control checks for hardness, fillet radius specifications, and straightness.

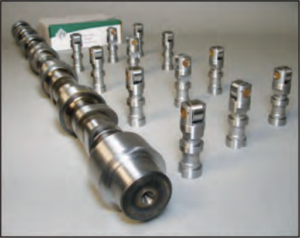

Camshafts and cam followers for popular applications. All held to the closest specifications and tolerances. More camshafts under development.
This is only a representation of our coverage, please contact your Customer Service Representative for further details. If you are an IPD Authorized Distributor, you can also access our on-line IPDNet™ parts cataloging and ordering system for up-to-date applications that are available from IPD.
IPD ENGINE MODEL SUMMARY
CATERPILLAR®
D3508 / D3512 / D3516 / D3524
G3508 / G3512 / G3516 / G3520
D3406 / D3408 / D3412
D3406E / D3408E / D3412E
G3406 / G3408 / G3412
D3304 / D3306 / D333
G3304 / G3306 / G333
3204 / 3208
3114 / 3116 / 3126 / 3176C / 3196
3064 / 3066
D379 / D398 / D399
G379 / G398 / G399
D353 / G353
D339 / D342 / G342
D343 / D346 / D348
C7, C9, C10, C12, C15 / C15 Acert
CUMMINS®
ISX/QSX
DETROIT DIESEL®
60 Series
WAUKESHA®
VHP Series
